DEWATERING EQUIPMENT

VOLUTE DUO™ DEWATERING PRESS

DEWATERING EQUIPMENT

Description

VOLUTE™ provides high filtration efficiency. It dewaters thin sludge without pre-thickening and self- cleans filter media, making continuous dewatering without clogging possible. This VOLUTE™ technology has evolved into VOLUTE DUO™
Add Inquiry (0)

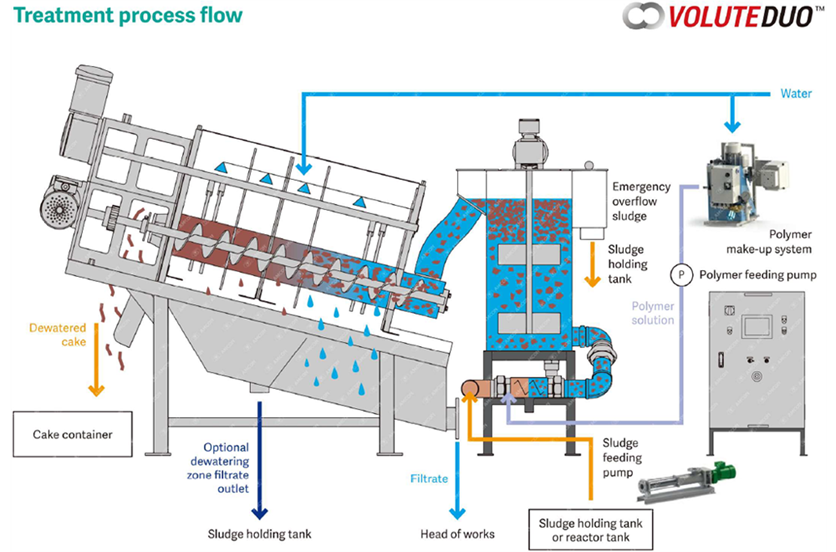

PRINCIPLE AND STRUCTURE

PRINCIPLE AND STRUCTURE

※ VOLUTE DUOTM is a trademark of AMCON products.

ADVANTAGES

ADVANTAGES
1. Twin screws are enclosed in one cylinder
By enclosing 2 screws in one filtration cylinder, this press significantly reduces the risk of blockage while providing higher transportation efficiency, even with difficult liquids or semi-liquid materials.
2. Significantly extended life span

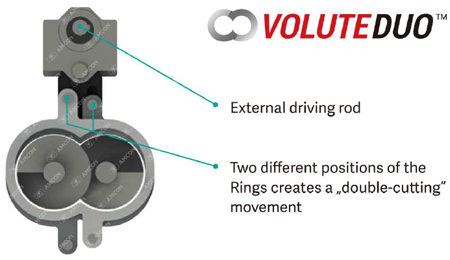

By driving the Moving Rings with an external rod, the two compo-nents which were once main consumables of the original design, now last significantly longer. A long-life durable design has been achieved.
The"double-cutting"movement of the Moving Rings has been adapt-ed to resemble the original movement, which contributes to the high  dewatering efficiency.

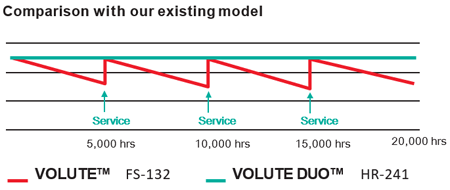

3.No performance deterioration for a long time
The Moving Rings and Screw(which have the potential to reduce dewatering efficiency)do not contact each other, thus high performance is maintained for long periods.
4.Redesigned, more compact flocculation tank
By adopting a new design concept and the in-line dosing of flocculants into sludge as standard, the tank dimensions are up to 50%* smaller compared with our previous model. The in-line mixing also improves the efficiency of the mixing and contributes to the reduction of the flocculant consumption by up to 25%*.

※ VOLUTE DUOTM is a trademark of AMCON products.

SPECIFICATION

VOLUTE DUO™ Throughput kg-DS/h Min. – Max. Dimensions L × W × H (mm) Operating Weight(kg) Power(kW)
HR-241 12/52 2166 × 911 × 1360 460 0.4
HR-501 60/260 3943 × 1030 × 1986 2600 3.05
HR-601 120/520 4759 × 1217 × 2207 3570 3.8
HR-701 180/830 5356 × 1387 × 2331 4570 5.2
HR-801 220/920 5805 × 1386 × 2377 6480 5.9
HR-802 440/1840 6580 × 2570 × 2377 12820 9.6

※ VOLUTE DUOTM is a trademark of AMCON products.

APPLICATION

APPLICATION
1.Municipal water and wastewater treatment plants
2.Industrial waste treatment plants
3.Food/Beverage product plants
4.Dairy farming, Meat Processing plants		 5. Chemical manufacturing plants
6. Machinery manufacturing plants
7. Metal processing plants
8. Laundry wastewater

※ VOLUTE DUOTM is a trademark of AMCON products.
